TENRYU'S best value for your non-ferrous metal cutting needs. Thin Kerf. Very Economical.
The Alumi-Cut Series offers true quality and affordability.
These blades are available in a wide variety of sizes to fit most popular job sites and shop saws. Excellent results in aluminum, copper, brass, bronze and other non-ferrous metals. Even works well in many plastics. Also good for woodworking and plastic cutting when needed. Resharpenable for long life, the Alumi-Cut blades will help you improve your bottom line!
These blades are also an excellent choice for cutting laminate flooring (i.e.: PergoR, etc.) with slide-miters or table saws.
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel bodies for true and accurate cuts.
- Appropriate triple-chip grind pattern for non-ferrous metals.
- Quality carbide ground to precision.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| AC-18560D | 7-1/4" | 60T | 5/8"KO | TCG | .079" | 0 | 8300 | General purpose for up to 1/4" thick | $58.00 |
| AC-20360DN | 8" | 60T | 5/8" | TCG | .087" | -5 | 7300 | General purpose for up to 1/4" thick | $66.60 |
| AC-21060DN | 8-1/4" | 60T | 5/8"KO | TCG | .087" | -5 | 7300 | General purpose for up to 1/4" thick | $64.60 |
| AC-21660DN | 8-1/2" | 60T | 5/8" | TCG | .087" | -5 | 7000 | General purpose for up to 1/4" thick | $79.20 |
| AC-255100DN | 10" | 100T | 5/8" | TCG | .094" | -5 | 5870 | For thin wall extrusions and use on slide-miter saws. Up to 1/16" thick | $104.00 |
| AC-25560DN | 10" | 60T | 5/8" | TCG | .087" | -5 | 5870 | General purpose for up to 3/8" thick | $73.00 |
| AC-25580DN | 10" | 80T | 5/8" | TCG | .094" | -5 | 5870 | General purpose for up to 1/4" thick | $96.00 |
| AC-30580DN | 12" | 80T | 1" | TCG | .110" | -5 | 5000 | For thicker wall up to 3/8" thick | $110.00 |
| AC-305100DN | 12" | 100T | 1" | TCG | .110" | -5 | 5000 | General purpose for up to 1/4" thick | $128.00 |
| AC-355100DN | 14" | 100T | 1" | TCG | .118" | -5 | 4300 | General purpose for up to 1/4" thick | $166.00 |
| AC-380100DN | 15" | 100T | 1" | TCG | .118" | -5 | 4020 | General purpose for up to 1/4" thick | $186.00 |
| AC-405120DN | 16" | 120T | 1" | TCG | .134" | -5 | 3690 | General purpose for up to 1/4" thick, NOT for Upcut saws | $240.00 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| CF-13550A2 | 5-3/8" | 50T | 20mm | TCG | .063" | 0 | 3700 | For aluminum cutting with 5-3/8" metal cutting saws | $42.40 |
| CF-15254A | 6" | 54T | 1/2" | TCG | .075" | 0 | 2600 | For aluminum cutting on 6" Porter Cable trim saw | $41.60 |
| CF-16560A | 6-1/2" | 60T | 5/8" | TCG | .079" | 0 | 3900 | For aluminum cutting on 6-1/2" cordless saws. Many Manufacturers | $45.80 |
USE LUBRICATION when cutting!!
The BEST CHOICE for long lasting performance when cutting Fiber-Cement Board.
Fiber-Cement Board is a very abrasive material that wears down normal carbide very quickly. The TENRYU BOARD-PRO incorporates special grade carbide tips for longer life.
Also available: BOARD-PRO PLUS: Latest technology PCD (poly-crystalline diamond) for EXTENDED cutting life- especially for thick (stacked) material. PCD tips produce a smoother cut. Thicker plate on PCD for longer life.
EACH BLADE FEATURES:
- Perfectly-tensioned, hardened-tool steel plates for flat, true run.
- Selected quality carbide grade.
- Extra long blade life.
- Economically priced.
- LESS DUST than traditional blades produce.
| MODEL # | DIA. | TEETH | BORE | KERF | GRIND | HOOK | APPLICATION | PRICE |
| BP-18524 | 7-1/4" | 24T | 5/8"KO | .075" | ATAF | 10 | Excellent for fast, 1-2 sheet thickness | $32.00 |
| BP-30540 | 12" | 40T | 1" | .091" | ATAF | 5 | Excellent for fast single sheet cutting - Table/Miter Saws | $88.00 |
EACH BLADE FEATURES:
- Perfectly-tensioned, hardened-tool steel plates for flat, true run.
- Selected quality PCD (Poly-Crystalline Diamond) faced tips for longer life.
- Extra long blade life.
- LOWER COST PER CUT!
- LESS DUST than traditional blades produce.
| MODEL # | DIA. | TEETH | BORE | KERF | GRIND | HOOK | MAX RPM | APPLICATION | PRICE |
| BP-16004 | 160mm | 4T | 20mm | 2.3mm | FTG | 12 | 5800 | Track/Plunge saws with the riving knife | $64.80 |
| BP-16004T | 160mm | 4T | 20mm | 1.8mm | FTG | 12 | 5800 | Track/Plunge saws with No riving knife | $64.80 |
| BP-16504T | 6-1/2" | 4T | 5/8" KO | .073" | FTG | 12 | 5800 | Cordless saws, Thinner kerf | $64.80 |
| BP-18505 | 7-1/4" | 5T | 5/8"KO | .091" | FTG | 12 | 5800 | Corded/Cordless saws | $74.00 |
| BP-18505T | 7-1/4" | 5T | 5/8"KO | .073" | FTG | 12 | 5800 | Corded/Cordless saws, Thinner kerf | $70.00 |
| BP-25506 | 10" | 6T | 5/8" | .098" | FTG | 8 | 5800 | Miter, or table saws | $114.00 |
| BP-30508 | 12" | 8T | 1" | .098" | FTG | 8 | 5800 | Miter saws | $145.00 |
Cordless saw blades for cutting wood, plastic, aluminum and steel with the most popular cordless machine models are available- all with TENRYU quality!
EACH BLADE FEATURES:
- Ultra-thin, perfectly tensioned steel plates for true run. This saves precious battery power and life.
- Precision honed, high-grade carbide for easy, smooth cuts and long life.
- Tooth configurations to meet specific cutting material and thickness applications.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | FITS | PRICE |
| CF-08520 | 3-3/8" | 20T | 15mm | ATB | .039" | 10 | 2240 | For cutting wood on 3-3/8" cordless saws | Makita and B&D | $18.40 |
| CF-13530W | 5-3/8" | 30T | 10mm | ATAF | .047" | 20 | 3200 | For general purpose on 5-3/8" cordless saws | DeWalt | $18.40 |
| CF-14036W | 5-1/2" | 36T | 10mm | ATAF | .063" | 15 | 4200 | For cutting wood with 5-1/2" cordless saw | Craftsman & Ryobi | $31.20 |
| CF-15218W | 6" | 18T | 1/2" | ATAF | .063" | 15 | 2600 | For ripping wood | Porter Cable | $27.20 |
| CF-15236W | 6" | 36T | 1/2" | ATAF | .063" | 15 | 2600 | For finer cuts in wood & for thin materials on 6" | Porter Cable | $31.20 |
| CF-16516WB* | 6-1/2" | 16T | 5/8" | ATAF | .059" | 20 | 3900 | For ripping wood with 6-1/2" cordless saws | Many Manufacturers/Bulk Packaged Price | Qty 3 @ $15.20 ea = $45.60 |
| CF-16524W | 6-1/2" | 24T | 5/8" | ATAF | .059" | 20 | 3900 | For general purpose with 6-1/2" cordless saws | Many Manufacturers | $25.00 |
| CF-16524WB* | 6-1/2" | 24T | 5/8" | ATAF | .059" | 20 | 3900 | For general purpose with 6-1/2" cordless saws | Many Manufacturers/Bulk Packaged Price | Qty 3 @ $18.80 ea = $56.40 |
| CF-16540W | 6-1/2" | 40T | 5/8" | ATAF | .059" | 20 | 3900 | For finish cutting with 6-1/2" cordless saws | Many Manufacturers | $29.20 |
| CF-16540WB* | 6-1/2" | 40T | 5/8" | ATAF | .059" | 20 | 3900 | For finish cutting with 6-1/2" cordless saws | Many Manufacturers/Bulk Packaged Price | Qty 3 @ $23.80 ea = $71.40 |
*Bulk packaged price sawblade not shipped in custom clamshell packaging. Ideal for large bulk orders at a discounted price.
Non-Ferrous Metals Include Aluminum, Brass, Bronze, Copper, etc.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | FITS | PRICE |
| CF-13550A2 | 5-3/8" | 50T | 20mm | TCG | .063" | 0 | 3700 | For aluminum cutting on 5-3/8" cordless saws. | Metal Cutting Saws | $42.40 |
| CF-15254A | 6" | 54T | 1/2" | TCG | .075" | 0 | 2600 | For aluminum cutting on 6" cordless saws. | Porter Cable | $41.60 |
| CF-16560A | 6-1/2" | 60T | 5/8" | TCG | .079" | 0 | 3900 | For aluminum cutting on 6-1/2" cordless saws. | Many Manufacturers | $45.80 |
Complete line of steel cutting saw blades made especially for cordless saws, great for mechanical construction (Electrical, HVAC, Plumbing, etc.)
Each Blade Features:
- Thin-kerf, and user-friendly designed
- Select C6 carbide for easy and safe cuts
Cord-Free Series for Steel Cutting
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| CF-13532M | 5-3/8" | 32T | 20mm | MTCG | .059" | 0 | 3700 | For cutting steel with 5-3/8" DeWalt cordless saw | $45.80 |
| CF-13550M | 5-3/8" | 50T | 10mm | MTCG | .055" | 0 | 3700 | For cutting sheet steel with 5-3/8" DeWalt cordless saw | $56.20 |
| CF-13636M | 5-3/8" | 36T | 20mm | MATB | .049" | -2 | 3700 | Premium steel cutting, great for spiral/ square duct pipes | $56.00 |
| CF-16548M | 6-1/2" | 48T | 5/8" | MTCG | .079" | 0 | 3900 | For cutting steel with 6-1/2" cordless saws. Many manufacturers | $62.40 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | APPLICATION | FITS | PRICE |
| CF-13556S | 5-3/8" | 56T | 20mm | MTCG | .043" | 0 | Less than 12 gauge | Many Manufacturers | $86.40 |
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
Superior Cutting Performance
TENRYU's Gold Medal Series is one of the best all around blades. The Gold Medal Dado Set will only add to TENRYU's reputation as the brand of choice for fine woodworking. This set produces super-clean dado edges with an astoundingly flat bottom surface in wood materials and even in melamine.
BLADE AND CHIPPER FEATURES:
- Fully heat-treated saw plates for superior endurance under heavy load.
- Individually hand hammer-tensioned for flat and true runs.
- Fine-grit honing of ALL sides of teeth for sharp, easy cutting action and long life.
- Quality fine-grain carbide grade for longer life and easier resharpening.
Most likely the lightest feeding dado you will ever experience!
Please note all safety instructions before use and adhere to instructions for maximum RPM speeds.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| GMD-20340 | 8" | 40T | 5/8" | TB/F** | .813" | 0 | 5870 | Premium quality dado set. For 1/4" to 13/16" width dadoing. 8" with two 40T main blades and four 2 tooth chippers | $398.00 |
| GMD-20340L | 8" | 40 | 5/8" | - | 1/8" | 0 | 5870 | Left outside cutter.* | For Specs View Only. Not Individually Sold |
| GMD-20340R | 8" | 40 | 5/8" | - | 1/8" | 0 | 5870 | Right outside cutter.* | For Specs view only. Not Individually Sold |
| GMD-8C | 8" | 2 | 5/8" | FTG | 1/8" | 0 | 5870 | 1/8" Chipper (2 each). | For Specs view only. Not Individually Sold |
| GMD-4C | 8" | 2 | 5/8" | FTG | 1/4" | 0 | 5870 | 1/4" Chipper (1 each). | For Specs view only. Not Individually Sold |
| GMD-16C | 8" | 2 | 5/8" | FTG | 1/16" | 0 | 5870 | 1/16" chipper (1 each). | For Specs view only. Not Individually Sold |
GROOVE OPTIONS: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16"
NOTE: The part number for the complete set is GMD-20340.
*Outer cutters cannot be used individually. The actual kerf of each is approx. 1/8". Placed together, the result is exactly 1/4".
**TB/F indicates that the outside blades are top-beveled in one direction only. Flat-topped "raker" tips are utilized in a "4 and 1" grind pattern. The chippers are flat-top grind to produce the nice, flat dado bottom surface.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| GMD-20324 | 8" | 24T | 5/8" | ATBR | .910 | 0 | 5870 | Super premium quality. 8" with two 24 tooth main blades and four 6 tooth chippers | $450.00 |
- Perfectly smooth flat bottom
- Extra 3/32 chipper for dadoing undersized veneer plywood
- Magnetic shims (.010", .012", .015") are included
Groove options (solid wood): 1/4", 5/16", 3/8" 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", and 29/32"
Groove options (veneer wood): 3/8", 5/8", and 3/4" (nominal thickness)
This is the top of the line choice for the serious craftsman who wants one superior table saw blade for most all woodworking.
Saw plate run-out less than .002" for flat true run. Built-in dampening system reduces vibration, making cuts quieter and more precise. Performs smooth, easy crosscuts and rips. Even does a great job on double sided laminates.
Carbide tip material is an extra hard, C-4 and super fine grain with corrosion inhibitors to give the keenest edge and longest sharp-life.
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel body for true and accurate cuts, meticulously hand hammer tensioned.
- A new grade of extra hard carbide resists both abrasive and chemical wear better than standard grades for longer life.
- Resin bond-filled expansion slots to absorb any vibration and for quieter cutting.
- TENRYU's fine grit honing ensures mirror finish on carbide for the keenest possible edges and a super clean cut.
Click the image to view enlarged chart.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| GM-25540 | 10" | 40T | 5/8" | ATB | .111" | 20 | 5870 | The high quality combination blade. Rip or cross-cut in thick or thin materials | $130.00 |
| GM-30560 | 12" | 60T | 1" | ATB | .118" | 20 | 5000 | The high quality combination blade. Rip or cross-cut in thick or thin materials | $178.00 |
| GM-35560 | 14" | 60T | 1" | ATB | .126" | 20 | 4300 | The high quality combination blade. Rip or cross-cut in thick or thin materials | $224.00 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| GM-25540-2 | 10" | 40T | 5/8" | ATB | .125" | 20 | 5870 | The high quality combination blade. Good for SawStop table saws | $130.00 |
These Blades ROCK! Take Your Pick! Two Great Options Specifically Designed for Heavy Gauge.
Tenryu's newest offering for your Metalworkers! Both the HEAVY METAL and the HEAVY METAL PLUS are designed for users seeking affordability, quick cutting, and long cut-life; especially in heavier mild steel profiles and plates.
- Industrial staircases, railings, mezzanines, platforms, grating, trailers, strut, etc.
- Rigging, oil field services equipment
- Plant and Equipment Maintenance and Repair (MRO)
Good for Metal cutting saws (Evolution, SteelMax, MK Morse, Milwaukee, JEPSON, Makita, DeWALT, Worm-Drive circular saws, or other make)
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| HM-18036D | 7" | 36T | 20mm | TCG | .067" | 2 | 4000 | 1/8"-1/4" Wall Thickness | $47.60 |
| HM-18536D | 7-1/4" | 36T | 5/8" KO | TCG | .067" | 2 | 4800 | 1/8"-1/4" Wall Thickness | $47.60 |
| HM-20342D | 8" | 42T | 5/8" KO | TCG | .067" | 2 | 4300 | 1/8" or Thicker Stock | $71.40 |
| HM-23048D | 9" | 48T | 1" | TCG | .067" | 2 | 3000 | 1/8" or Thicker Stock | $71.40 |
| HM-30554DX | 12" | 54T | 1" | MTCG | .087" | 2 | 2000 | 1/8"-1/2" Wall Thickness | $127.60 |
| HM-35566DX | 14" | 66T | 1" | MTCG | .087" | 2 | 1800 | 1/8"-1/2" Wall Thickness | $136.00 |
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
Specially Engineered Alloy teeth provide exceptional cut-life and lowest cost per cut in the most demanding applications.
The Heavy Metal Plus Series is an evolution of the Heavy Metal in that it features the same super thin-kerf and grinds as the Heavy Metal Series, but features Tenryu's specially engineered alloy cutting tips to further extend cut-life in heavy load applications.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| HMC-18036BW | 7" | 36T | 20mm | MTCG | .073" | 0 | 4000 | 1/8"-1/4" Wall Thickness | $64.80 |
| HMC-18536BW | 7-1/4" | 36T | 5/8" KO | MTCG | .073" | 0 | 4800 | 1/8"-1/4" Wall Thickness | $64.80 |
| HMC-20342BW | 8" | 42T | 5/8" | MTCG | .073" | 0 | 4300 | 1/8" or Thicker Stock | $86.40 |
| HMC-20342DM | 8" | 42T | 5/8" KO | TCG | .065" | -5 | 4300 | 1/8"-1/4" Wall Thickness | $86.40 |
| HMC-23048BW | 9" | 48T | 1" | MTCG | .073" | 0 | 3000 | 1/8" or Wall Thicker Stock | $90.80 |
| HMC-30554DX | 12" | 54T | 1" | MTCG | .087" | 2 | 2000 | 1/8"-1/2" Wall Thickness | $166.40 |
| HMC-35566DX | 14" | 66T | 1" | MTCG | .087" | 2 | 1800 | 1/8"-1/2" Wall Thickness | $180.00 |
Extended Heavy Metal Plus Series for general purpose. Thin kerf, more teeth, and Heavy Metal Plus Alloy teeth design for a wide variety of applications, from 20 gauge to 1/4" wall thickness.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| HMC-30572DX | 12" | 72T | 1" | MTCG | .087" | 2 | 2000 | General purpose, 20 gauge- 1/4" wall thickness | $198.00 |
| HMC-35581DX | 14" | 81T | 1" | MTCG | .087" | 2 | 1800 | General purpose, 20 gauge- 1/4" wall thickness | $210.00 |
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
TENRYU's European industrial quality line for heavy duty applications.
EACH BLADE FEATURES:
- Select grade of carbide tip for better performance.
- Large European style tips.
- Heavy, European plate style resists deflection during cutting.
- Resin bond, laser slots to absorb and eliminate vibration to produce a cleaner, quieter, more efficient cut.
- Excellent blade life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25540CB1 | 10" | 40T | 5/8" | ATAF | .091" | .071" | 5 | 5870 | General application in wood with Miter saws | $77.00 |
| IW-25560CB1 | 10" | 60T | 5/8" | ATAF | .091" | .071" | 5 | 5870 | General purpose woodworking with Miter saws | $94.60 |
| IW-25580CB1 | 10" | 80T | 5/8" | ATAF | .091" | .071" | 5 | 5870 | Finish cuts in wood with Miter saws | $114.40 |
| IW-30540CB2 | 12" | 40T | 1" | ATAF | .094" | .071" | 5 | 5000 | General applications in wood with Miter Saw | $94.60 |
| IW-30560CB2 | 12" | 60T | 1" | ATAF | .094" | .071" | 5 | 5000 | General purpose woodworking with Miter saws | $110.00 |
| IW-30580CB2 | 12" | 80T | 1" | ATAF | .094" | .071" | 5 | 5000 | Finish cuts in wood with Miter saws | $132.00 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25540AB1 | 10" | 40T | 5/8" | ATBR | .110" | .079" | -3 | 5870 | Combination. General woodworking with Radial arm saws | $83.16 |
| IW-25580AB1 | 10" | 80T | 5/8" | ATBR | .096" | .079" | -5 | 5870 | Finish cutting. Trim carpentry | $147.40 |
| IW-26080AB3 | 260mm | 80T | 30mm | ATBR | .096" | .079" | -5 | 5870 | Ultimate trim cutting for professional carpentry. Great for small/thin/tall moulding | $165.00 |
| IW-305100AB2 | 12" | 100T | 1" | ATBR | .104" | .087" | -5 | 5000 | Trim cutting/Finishing- Miter saws | $178.20 |
| IW-30550AB2 | 12" | 50T | 1" | ATBR | .110" | .079" | -3 | 5000 | Combination. General woodworking with Radial arm saws | $107.80 |
| IW-30580AB2 | 12" | 80T | 1" | ATBR | .104" | .087" | -5 | 5000 | Trim cutting/General Purpose- Miter saws | $158.40 |
| IW-30590AB1A | 12" | 90T | 5/8" | ATBR | .118" | .087" | -3 | 5000 | Finish miter cutting with less chipping | $184.00 |
| IW-35560AB2 | 14" | 60T | 1" | ATBR | .118" | .087" | -3 | 4300 | General applications in wood with Radial arm saws | $132.00 |
| IW-355110AB1 | 14" | 110T | 5/8" | ATBR | .118" | .087" | -3 | 4300 | Finish miter cutting with less chipping | $253.00 |
| IW-38060AB2 | 15" | 60T | 1" | ATBR | .118" | .087" | -3 | 4020 | General applications in wood with Radial arm saws | $151.80 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IS-25560D1 | 10" | 60T | 5/8" | TCG | .102" | .079" | -5 | 5870 | General purpose solid surface cutting with Table/Miter saws | $116.60 |
| IS-30580D2 | 12" | 80T | 1" | TCG | .110" | .087" | -5 | 5000 | General purpose solid surface cutting with Table/Miter saws | $140.80 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25524CBD1 | 10" | 24T | 5/8" | ATB | .126" | .087" | 20 | 5870 | Ripping in wood with Table Saw | $77.00 |
| IW-25540CBD1 | 10" | 40T | 5/8" | ATB | .118" | .079" | 10 | 5870 | General applications in wood with Table Saw | $83.16 |
| IW-25560CBD1 | 10" | 60T | 5/8" | ATB | .118" | .079" | 10 | 5870 | Finish woodworking with Table saws, ATB grind | $96.80 |
| IW-25540D1 | 10" | 40T | 5/8" | TCG | .118" | .079" | 10 | 5870 | General applications with Table saws, also good for Nylon, or UHMW | $85.80 |
| IW-25560D1 | 10" | 60T | 5/8" | TCG | .118" | .079" | 10 | 5870 | Finish woodworking with Table saws, TCG grind | $101.20 |
| IW-30528CBD2 | 12" | 28T | 1" | ATB | .126" | .087" | 20 | 5870 | Ripping in wood with Table saws | $96.80 |
| IW-35532CBD2 | 14" | 32T | 1" | ATB | .138" | .098" | 20 | 4300 | General ripping with Table saws | $116.60 |
Click here to view the rest of the Industrial Blade Series Part 2
TENRYU's European industrial quality line for heavy duty applications.
EACH BLADE FEATURES:
- Select grade of carbide tip for better performance.
- Large European style tips.
- Heavy, European plate style resists deflection during cutting.
- Resin bond, laser slots to absorb and eliminate vibration to produce a cleaner, quieter, more efficient cut.
- Excellent blade life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IL-25580H1 | 10" | 80T | 5/8" | HATB | .118" | .087" | -5 | 5870 | Finish cuts in Melamine with Table Saw | $121.00 |
| IL-305100H2 | 12" | 100T | 1" | HATB | .118" | .087" | -5 | 5000 | Finish cuts in Melamine with Table Saw | $154.00 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25530D1 | 10" | 30T | 5/8" | TCG | .142" | .094" | 20 | 5870 | Glue line ripping in wood with Table saws (Mainly for up to 3/4" thick wooden board) | $93.50 |
| IW-30536D2 | 12" | 36T | 1" | TCG | .157" | .110" | 20 | 5000 | Glue line ripping in wood with Table saws (Mainly for up to 3/4" thick wooden board) | $125.40 |
| IW-35540D2 | 14" | 40T | 1" | TCG | .157" | .110" | 20 | 4300 | Glue line ripping in wood with Table saws (Mainly for up to 3/4" thick wooden board) | $145.20 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-30550AB2A | 12" | 50T | 1" | ATAFR | .118" | .087" | 20 | 5000 | Ripping with Straight line rip saws (Not for other equipment) | $118.80 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | APPLICATION | PRICE |
| IW-400120CBD3 | 400mm | 120T | 30mm | ATB | .157" | 10 | Trim cuts | $330.00 |
| IW-405100AB2 | 16" | 100T | 1" | ATAFR | .157" | 15 | General purpose | $290.00 |
| IW-405120CBD2 | 16" | 120T | 1" | ATB | .157" | 10 | Trim cuts | $330.00 |
| IW-455100AB2 | 18" | 100T | 1" | ATAFR | .173" | 15 | General purpose | $380.00 |
| IW-455120CBD2 | 18" | 120T | 1" | ATB | .173" | 10 | Trim cuts | $420.00 |
| IW-510100AB2 | 20" | 100T | 1" | ATAFR | .173" | 15 | General purpose | $460.00 |
| IW-510120CBD2 | 20" | 120T | 1" | ATB | .173" | 10 | Trim cuts | $500.00 |
| IW-600120AB2 | 600mm | 120T | 1" | ATAFR | .181" | 15 | General purpose | $600.00 |
Click here to view the rest of the Industrial Blade Series Part 1
Introducing the new IA Series
- Up to 20" Diameter
- Resin filled laser cut slots to reduce noise and reduce vibration
- Same market leading thin-kerf design to reduce cutting waste and improve sharp life
- Still excellent value
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IA-18542DN | 7-1/4" | 42T | 5/8" KO | TCG | .087" | -5 | 8300 | Heavy Gauge aluminum cutting. Up to 1/2" wall thickness | $64.00 |
| IA-18560D | 7-1/4" | 60T | 5/8"KO | TCG | .079" | 0 | 8300 | General purpose up to 1/4" thick. Great for extrusion | $71.40 |

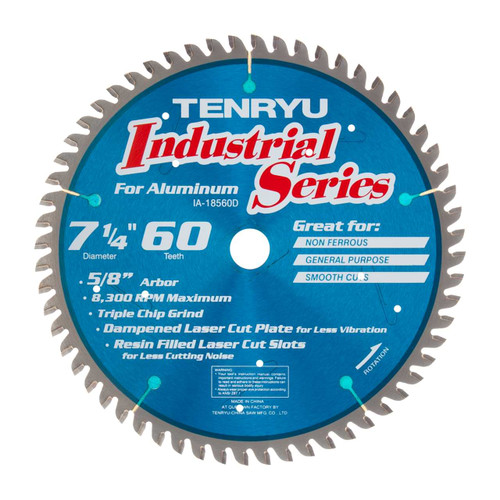

| IA-20348DN | 8" | 48T | 5/8" KO | TCG | .087 | -5 | 7300 | Heavy Gauge aluminum cutting. Up to 1/2" wall thickness | $69.20 |
| IA-20360DN | 8" | 60T | 5/8"KO | TCG | .087" | -5 | 7300 | General purpose up to 1/4" thick | $80.00 |
| IA-21060DN | 8-1/4" | 60T | 5/8"KO | TCG | .087" | -5 | 7300 | General purpose up to 1/4" thick | $78.00 |
| IA-21660DN | 8-1/2" | 60T | 5/8"KO | TCG | .087" | -5 | 7000 | General purpose up to 1/4" thick | $93.00 |
| IA-25548DN | 10" | 48T | 5/8" | TCG | .094" | -5 | 5870 | Heavy gauge aluminum cutting. For miter/ chop saws | $87.96 |
| IA-25560DN | 10" | 60T | 5/8" | TCG | .087" | -5 | 5870 | For thicker wall up to 3/8" thick | $100.94 |
| IA-25580DN | 10" | 80T | 5/8" | TCG | .094" | -5 | 5870 | General purpose up to 1/4" thick | $125.66 |
| IA-255100DN | 10" | 100T | 5/8" | TCG | .094" | -5 | 5870 | For thin wall extrusions and use on slide-miter saws. Up to 1/16" thick | $135.96 |
| IA-260100DN | 260mm | 100T | 30mm | TCG | .094" | -5 | 5870 | Thin wall extrusion. Up to 1/16" thick. For KAPEX saw | $140.00 |
| IA-26080DN | 260mm | 80T | 30mm | TCG | .094" | -5 | 5870 | General purpose. Up to 1/4" thick. For KAPEX saw | $130.00 |
| IA-30556DN | 12" | 56T | 1" | TCG | .094" | -5 | 5000 | Heavy gauge aluminum cutting. For miter/ chop saws | $111.24 |
| IA-30580DN | 12" | 80T | 1" | TCG | .094" | -5 | 5000 | For thicker wall up to 3/8" thick | $142.14 |
| IA-305100DN | 12" | 100T | 1" | TCG | .110" | -5 | 5000 | General purpose for up to 1/4" thick | $162.74 |
| IA-35564DN | 14" | 64T | 1" | TCG | .118" | -5 | 4300 | Heavy gauge aluminum cutting. For miter/ chop saw | $140.08 |
| IA-355100DN | 14" | 100T | 1" | TCG | .118" | -5 | 4300 | General purpose for up to 1/4" thick. NOT for Upcut saws | $206.00 |
| IA-405120DN | 16" | 120T | 1" | TCG | .134" | -5 | 3690 | General purpose up to 1/4" thick. NOT for Upcut saws | $290.46 |
| IA-455120DN | 18" | 120T | 1" | TCG | .142" | -5 | 3400 | General purpose up to 1/4" thick. NOT for Upcut saws | $369.60 |
| IA-510120DN | 20" | 120T | 1" | TCG | .150" | -5 | 3000 | General purpose up to 1/4" thick. NOT for Upcut saws | $410.00 |
High prodcution performace for industrial Upcut Saws.
- Thin kerf designed for higher prodcution with less heat generation
- TCG (Triple Chip Grind) grind for efficient cutting on wide variety of materials
- Signature resin filled laser slots for reducing the noise and the vibration
- Positive degree rake angle versatile design for extrusion, and solid materials
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | PLATE | HOOK | APPLICATION | PRICE |
| IA-355100D2 | 14" | 100T | 1" | TCG | .118" | .098" | 5 | General Purpose | $230.00 |
| IA-405100D2 | 16" | 100T | 1" | TCG | .118" | .098" | 5 | General Purpose | $272.00 |
| IA-405120D2 | 16" | 120T | 1" | TCG | .118" | .098" | 5 | Thin Extrusion | $292.00 |
| IA-455100D2 | 18" | 100T | 1" | TCG | .118" | .098" | 5 | General Purpose | $350.00 |
| IA-455120D2 | 18" | 120T | 1" | TCG | .118" | .098" | 5 | Thin Extrusion | $370.00 |
| IA-500100D3 | 500mm | 100T | 30mm | TCG | .118" | .098" | 5 | General Purpose | $390.00 |
| IA-500120D3 | 500mm | 120T | 30mm | TCG | .118" | .098" | 5 | Thin Extrusion | $410.00 |
| IA-510100D2 | 20" | 100T | 1" | TCG | .118" | .098" | 5 | General Purpose | $390.00 |
| IA-510120D2 | 20" | 120T | 1" | TCG | .118" | .098" | 5 | Thin Extrusion | $410.00 |
| IA-610120D2 | 24" | 120T | 1" | TCG | .150" | .126" | 5 | General Purpose | $520.00 |
| IA-610120D2A | 24" | 120T | 1" | TCG | .157" | .118" | 10 | Medium duty, for TigerSaw | $520.00 |
Specialty Grind for Thin Stock
TENRYU introduces an unique grind of non-ferrous cutting blade series for very thin stock, such as picture frame moulding, radiator fins or other thin-walled aluminum extruded materials.
The regular INDUSTRIAL SERIES for NON-FERROUS has the anti-noise and anti-vibration design. However, this specialty thin stock non-ferrous cutting blade series performs even quieter and with less vibration. There is almost no deformation of the material after cutting and much less high pitch noise during the cut.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IA-25596BX1 | 10" | 96T | 5/8" | MTCG | .094" | -5 | 5870 | Chop/Miter/Radial Arm Saw | $158.62 |
| IA-300108BX3 | 300mm | 108T | 30mm | MTCG | .110" | -5 | 5100 | Chop/Miter/Radial Arm Saw | $180.00 |
| IA-305108BX1 | 12" | 108T | 5/8" | MTCG | .110" | -5 | 5000 | Chop/Miter/Radial Arm Saw | $185.40 |
| IA-305108BX2 | 12" | 108T | 1" | MTCG | .110" | -5 | 5000 | Chop/Miter/Radial Arm Saw | $185.40 |
TENRYU's European industrial quality line for heavy duty applications.
EACH BLADE FEATURES:
- Select grade of carbide tip for better performance.
- Large European style tips.
- Resin bond, laser slots to absorb and eliminate vibration to produce a cleaner, quieter, more efficient cut.
- Excellent blade life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-30028CBD3 | 300mm | 28T | 30mm | ATB | .128" | 25 | 5100 | Ripping wood on sliding table saw- Table/Panel saw | $96.80 |
| IW-35032CBD3 | 350mm | 32T | 30mm | ATB | .136" | 25 | 4300 | Ripping wood on sliding table saw- Table/Panel saw | $116.60 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25080AB3 | 250mm | 80T | 30mm | ATAFR | .128" | 10 | 5870 | Finish cross cuts in veneer plywood- Table/Panel saw | $114.40 |
| IW-300100AB3 | 300mm | 100T | 30mm | ATAFR | .128" | 10 | 5100 | Finish cross cuts in veneer plywood- Table/Panel saw | $143.00 |
| IW-350100AB3 | 350mm | 100T | 30mm | ATAFR | .136" | 10 | 4300 | Finish cross cuts in veneer plywood- Table/Panel saw | $173.80 |
| IW-25080ABD3 | 250mm | 80T | 30mm | ATBR | .128" | 15 | 5870 | Finish cross cuts in solid wood- Table/Panel saws | $114.40 |
| IW-300100ABD3 | 300mm | 100T | 30mm | ATBR | .128" | 15 | 5100 | Finish cross cuts in solid wood- Table/Panel saws | $143.00 |
| IW-350100ABD3 | 350mm | 100T | 30mm | ATBR | .136" | 15 | 4300 | Finish cross cuts in solid wood- Table/Panel saws | $173.80 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25040CBD3 | 250mm | 40T | 30mm | ATB | .128" | 20 | 5870 | General purpose combination- Table/Panel saws | $110.00 |
| IW-30050CBD3 | 300mm | 50T | 30mm | ATB | .128" | 20 | 5100 | General purpose combination- Table/Panel saws | $132.00 |
| IW-35060CBD3 | 350mm | 60T | 30mm | ATB | .136" | 20 | 4300 | General purpose combination- Table/Panel saws | $160.60 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IL-25080H3 | 250mm | 80T | 30mm | HATB | .118" | -5 | 5870 | Finish cuts in Melamine & Laminates- Table/Panel saws | $127.60 |
| IL-300100H3 | 300mm | 100T | 30mm | HATB | .118" | -5 | 5100 | Finish cuts in Melamine & Laminates- Table/Panel saws | $156.20 |
| IL-350100H3 | 350mm | 100T | 30mm | HATB | .118" | -5 | 4300 | Finish cuts in Melamine & Laminates- Table/Panel saws | $198.00 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-25080D3* | 250mm | 80T | 30mm | TCG | .128" | 10 | 5870 | For composite materials, plywood, etc. With/Without scoring blade- Table/Panel saws | $114.40 |
| IW-300100D3* | 300mm | 100T | 30mm | TCG | .128" | 10 | 5100 | For composite materials, plywood, etc. With/Without scoring blade- Table/Panel saws | $143.00 |
| IW-350100D3* | 350mm | 100T | 30mm | TCG | .136" | 10 | 4300 | For composite materials, plywood, etc. With/Without scoring blade- Table/Panel saws | $176.00 |
*This series is designed for fitting metric-sized saws (250mm-350mm dia) with dedicated 30mm arbors, and the following pin-hole patterns:
(# of holes) - (Hole diameter) - (Bolt circle)
- 2 - 7.0mm - 42.0mm
- 2 - 9.0mm - 46.0mm
- 2 - 10.0mm - 60.0mm
The Ultimate Single-Sided Laminate (Low Pressure/High Pressure) and Veneer-Faced Plywood Cutting Blade!
The Mel-Pro Series is a complete line of blades that solve problems associated with cutting laminated wood products. Additionally, veneer-faced plywood can be cut without splintering at more reasonable feed speeds than in the past.
FINER CUTS- Precision ground carbide teeth set on hand-tensioned tool steel bodies produce finer cuts without chipping and "bottom-side blowout".
QUIETER- Patented resin bond-filled expansion slots effectively absorb vibration and reduce noise.
LONGER LIFE- High-grade, extra-hard, micro-grain, anti-corrosive carbide teeth fight both chemical and abrasive wear to remain sharp longer. There are a lot of blades on the market that can cut melamine but only the TENRYU Mel-Pro can cut it chip free, quieter, easier and longer.
Numerous requests for a better melamine blade prompted TENRYU to spend over a year of research and development to bring you the world's most advanced melamine cutting blade. The Mel-Pro features a fully hardened, expertly tensioned tool steel body that absorbs impact, remains flat and true, and resists excess heat buildup. The Mel-Pro's exclusive, red bond, resin filled expansion slots absorb vibration, reduce heat and permit the blade to run quieter than any other brand. The thin-kerf, mirror-like grind on super hard, specially designed carbide tips allow for lighter cuts and reduce friction heat buildup. The bottom line is your bottom line will look better when you reduce scrap, reduce sharpening costs and reduce noise in your shop with Mel-Pro blades.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| ML-25580AB | 10" | 80T | 5/8" | ATAFR | .118" | 0 | 5870 | For laminate material, single sided laminate board, or veneer plywood- Table saws | $170.00 |
| ML-255100AB | 10" | 100T | 5/8" | ATAFR | .118" | 0 | 5870 | For thin laminate board, or veneer plywood- Table saws | $194.00 |
| ML-305100AB | 12" | 100T | 1" | ATAFR | .126" | 0 | 5000 | For laminate material, single sided laminate board, or veneer plywood- Table saws | $212.00 |
| ML-305120AB | 12" | 120T | 1" | ATAFR | .126" | 0 | 5000 | For thin laminate board, or veneer plywood- Various use | $232.00 |
| ML-355120AB | 14" | 120T | 1" | ATAFR | .126" | 0 | 4300 | For laminate material, single sided laminate board, or veneer plywood- Table saws | $316.00 |
Hi-ATB Melamine (Single/Double Sided Low Pressure Laminate)
EACH BLADE FEATURES:
- Hi-ATB design with negative (-5) rake angle tooth geometry - NO TEAR OUT!
- Traditional full-kerf, "European Style" blade design
- C-4 hardness, super fine grain, anti-corrosive carbide tips for the keenest edges and extended sharp life.
PREMIUM, INDUSTRIAL HI-ATB FEATURES:
- Specially developed, top-grade, super fine grain carbide tip.
- NEW: Additional, "resin-filled, laser cut body slots" succeed in vibration dampening to an even greater extent.
- Exhaustive, hand-hammer plate tensioning assures truer and smoother cuts.
- Longer Lasting.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| ML-25580H | 10" | 80T | 5/8" | HATB | .118" | -5 | 5870 | Chip-free cutting of double sided low-pressure laminate- Table saws | $216.00 |
| ML-255100H | 10" | 100T | 5/8" | HATB | .118" | -5 | 5870 | Especially good for thinner stock- Table saws | $237.60 |
| ML-30580H | 12" | 80T | 1" | HATB | .126" | -5 | 5000 | Chip-free cutting of double sided low-pressure laminate- Table saws | $242.00 |
| ML-305100H | 12" | 100T | 1" | HATB | .126" | -5 | 4700 | Especially good for thinner stock- Table saws | $264.00 |
| ML-355100H | 14" | 100T | 1" | HATB | .126" | -5 | 4700 | Chip-free cutting of double sided low-pressure laminate- Table saws | $302.00 |
TENRYU's ultimate woodworking blade for miter saws and sliding miter saws.
TENRYU responds to customer demand! They now have a line of blades specially designed for high performance, smooth cuts and heavier duty applications on miter saws, slide-miter saws and radial arm saws. These are their "Cadillac/Mercedes" grade miter saw blades.
TENRYU'S proven, super-true, laser-cut, hand tensioned steel plate with new and improved, patented, resin bond-filled expansion slots ensures smooth, accurate and quiet cuts. Specially designed, top-quality, micrograin carbide tips, honed to a precision edge with 600 grit diamond wheels cut clean and easy. Zero degree hook angle prevents lifting of workpiece but does not make your saw overwork. The result is a safe, chip-free and smooth cut.
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel bodies for true and accurate cuts.
- High-grade, fine grain carbide tips for long life.
- Super-fine grit honing of carbide edge for clean, smooth cuts.
- Additional resin bond-filled expansion slots for even quieter cutting.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| MP-25560CB | 10" | 60T | 5/8" | ATAF | .110" | -5 | 5870 | Miter-Pro. A great choice for fast and easy miter cuts in wood | $134.00 |
| MP-25580CB | 10" | 80T | 5/8" | ATAF | .118" | 0 | 5870 | When smooth cuts are needed, especially in thinner stock | $140.40 |
| MP-30560CB | 12" | 60T | 1" | ATAF | .118" | 0 | 5000 | The 12" Miter-Pro for woodworking. Industrial strength | $130.00 |
| MP-30580CB | 12" | 80T | 1" | ATAF | .118" | 0 | 5000 | For smoother cuts, especially in thinner materials | $142.00 |
| MP-305100CB | 12" | 100T | 1" | ATAF | .118" | 0 | 5000 | For the smoothest cuts in the thinnest stock | $152.00 |
| MP-305100CB2 | 12" | 100T | 5/8" | ATAF | .118" | 0 | 5000 | Use on double miter saws and radial arm saws for woodworking | $162.00 |
| MP-380100CB | 15" | 100T | 1" | ATAF | .126" | 0 | 4020 | Use on 15" miter saws. For woodworking. Finish smooth cutting | $214.00 |
All the features of the Miter-Pro series Plus newly added technological improvements to make them better and heavier-duty than ever.
- Finest and smoothest cuts ever on your miter or radial arm saws.
- Best suited blade for the latest Slide Miter Saws as well as traditional Miter Saws.
- Negative rake angle tooth design (-3 degree) - For finer cuts in thin or brittle materials.
- Reduced tendency to grab materials being cut.
- Additional, Resin-Filled Silencing Slots in plate eliminate troublesome vibration for smoother cuts, reduced noise and longer sharp-life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| MP-25560AB | 10" | 60T | 5/8" | ATAFR | .110" | -3 | 5870 | Miter-Pro Plus. A great choice for fast and yet super smooth miter cuts in thicker wood | $152.00 |
| MP-25580AB | 10" | 80T | 5/8" | ATAFR | .110" | -3 | 5870 | Smooth cutting, wide variety material thickness. Great for trim carpentry | $170.00 |
| MP-255100AB | 10" | 100T | 5/8" | ATAFR | .110" | -3 | 5870 | When super-smooth cuts are needed, especially in thinner stock | $192.00 |
| MP-26080AB | 260mm | 80T | 30mm | ATAFR | .110" | -3 | 5870 | Finish/Trim Cutting with FESTOOL KAPEX | $194.00 |
| MP-30560AB | 12" | 60T | 1" | ATAFR | .118" | -3 | 5000 | The 12" Miter-Pro Plus for woodworking. Industrial strength. Best for thicker materials | $164.00 |
| MP-30580AB | 12" | 80T | 1" | ATAFR | .118" | -3 | 5000 | Smooth cutting, heavy duty performance in the widest range of material thicknesses | $180.00 |
| MP-305100AB | 12" | 100T | 1" | ATAFR | .118" | -3 | 5000 | Smooth cutting. Wide variety material thickness. Great for trim carpentry | $206.00 |
| MP-305100AB2 | 12" | 100T | 5/8" | ATAFR | .118" | -3 | 5000 | Smooth cutting. Wide variety material thickness. Great for trim carpentry | $218.00 |
| MP-355100AB2 | 14" | 100T | 5/8" | ATAFR | .118" | -3 | 4700 | For Double Miter Saws. Great for picture frame mouldings | $270.00 |
| MP-380100AB | 15" | 100T | 1" | ATAFR | .126" | -3 | 4020 | Finish/smooth cutting | $262.00 |
TENRYU'S professionals' choice for high performance panel saw cutting. The same, superior features and benefits of Tenryu's Mel-Pro series in sizes to fit the most popular panel saws.
Excellent for long lasting, precise cuts in wood, wood composites, and laminated materials on panel saws.
Panel saws are often used to cut large sheets of "difficult" materials like MDF, melamine or particle board. These materials are laden with chemicals and adhesives which attack the carbide causing corrosion of the cutting edge. The Panel-Pro blades come equipped with Tenryu's best anti-corrosive micro-grain carbide. That, plus our super-flat, perfectly tensioned plate adds up to very precise, long lasting performance on your panel saw!
For cutting aluminum materials on panel saws, see Tenryu's Alumi-Cut Series blades. For cutting Solid Surface Materials, see Tenryu's Pro Series for Solid Surface.
Try these blades even without the scoring saw- you'll love the results!
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel bodies for true and accurate cuts.
- High-grade, extra hard, wear-resistant carbide tips for long life.
- Fine grit honing of carbide edges for clean, smooth cuts.
- Resin bond-filled expansion slots for reduced vibration and quieter cutting.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PP-20360AB | 8" | 60T | 5/8" | ATAFR | .110" | 0 | 7300 | For 8" vertical panel saws (Milwaukee, Safety Speedcut) | $151.20 |
| PP-22060AB | 220mm | 60T | 30mm* | ATAFR | .110" | 0 | 6900 | For European panel saws (220mm) | $156.00 |
| PP-30075AB | 300mm | 75T | 30mm* | ATAFR | .110" | 0 | 5100 | For European vertical panel saws, or sliding table saws (300mm) | $228.00 |
* with pin-drive holes
TENRYU'S best value for quality cuts in a wide variety of plastics. Thin kerf. Very economical.
The Plastic Cutter series offers true quality, variety, and affordability. Designed for general purpose cutting applications, the Plastic Cutter blades will perform very well in a wide variety of plastic materials. Cutting plastics with the wrong blade results in chipping of brittle materials and/or melting of the cut edge. TENRYU Plastic Cutter blades are manufactured to strict tolerances to reduce chipping. In addition, the "no melt" grind pattern on the carbide teeth helps keep heat build-up down and prevents melting. Smooth, clean and melt-free cuts in PVC, acrylics, and other sheet plastics are made possible.
EACH BLADE FEATURES:
- Individually hammer tensioned steel plates for true run.
- Specially selected grade of carbide for excellent work in plastic.
- TENRYU'S super fine honing leaves a mirror-like finish on the carbide for clean and melt-free cuts.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PC-18560CB | 7-1/4" | 60T | 5/8"KO | ATAF | .079" | 5 | 8300 | An excellent blade for use in plastic and acrylic materials.- Circular saw | $60.60 |
| PC-25580CB | 10" | 80T | 5/8" | ATAF | .102" | 5 | 5870 | For cutting a wide variety of plastics on 10" saws- Various use | $100.00 |
| PC-305100CB | 12" | 100T | 1" | ATAF | .110" | 5 | 5000 | Fine cutting blade for working with plastics of all kinds - Various use | $134.00 |
| PC-355100CB | 14" | 100T | 1" | ATAF | .118" | 5 | 4300 | Plastic Cutter. For great performance in a variety of plastics- Table saw | $174.00 |
TENRYU proudly carries quality saw blades for plunge cut saws. These blades are suitable for:
- The FESTOOL® TS55 & TS75 machines
- and others
5 years R&D work and study for ultimate plunge-cut saw blades in various applications.
- Resin filled laser cut slots to reduce cutting noise and to reduce vibration
- PTFE coated plate to reduce pitch build-up and to lower resistance
- Select grade of carbide tips for industrial quality jobs
- ATAF shear face grind for splinter-free cross cuts
New standard kerf design (.073"/1.8mm) for all newer FESTOOL track saws (TS55FEQ, TSC55K, HKC55), also suitable for other major power tool branded 6-1/2" track saws.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | PLATE | MAX RPM | APPLICATION | PRICE |
| PSW-16012CBD2 | 160mm | 12T | 20mm | ATB | .094" | 20 | .063" | 9250 | Wood (Fast ripping) | $38.64 |
| PSW-16012CBD2T | 160mm | 12T | 20mm | ATB | 1.8mm | 20 | - | 9250 | Wood (Fast ripping) | $38.64 |
| PSW-16028CBD2 | 160mm | 28T | 20mm | ATB | .087" | 15 | .063" | 9250 | Wood (Combination) | $52.30 |
| PSW-16028CBD2T | 160mm | 28T | 20mm | ATB | 1.8mm | 15 | - | 9250 | Wood (Combination) | $52.30 |
| PSW-16048AB2 | 160mm | 48T | 20mm | ATAFR | .087" | 10 | .063" | 9250 | Wood, or Veneer plywood (Cross cutting, finishing) | $72.66 |
| 160mm | 45T | 20mm | ATAFR | 1.8mm | 18 | - | 9250 | Wood, or Veneer plywood (Cross cutting, finishing) | $72.66 | |
| PSL-16048ABM2 | 160mm | 48T | 20mm | ATAFR | .094" | -5 | .063" | 9250 | Laminate (single, or double sided) | $79.38 |
| PSL-16045ABM2T | 160mm | 45T | 20mm | ATAFR | 1.8mm | -5 | - | 9250 | Laminate (single, or double sided) | $79.38 |
| PSL-16048D2 | 160mm | 48T | 20mm | TCG | .094" | 5 | .063" | 9250 | MDF, solid surface, flooring, or laminate (single sided) | $79.38 |
| PSL-16048D2T | 160mm | 48T | 20mm | TCG | 1.8mm | 5 | - | 9250 | MDF, solid surface, flooring, or laminate (single sided) | $79.38 |
| PSA-16056D2* | 160mm | 56T | 20mm | TCG | .094" | -3 | .063" | 9250 | Aluminum, or plastic | $90.72 |
| PSA-16056D2T* | 160mm | 56T | 20mm | TCG | 1.8mm | -3 | - | 9250 | Aluminum, or plastic | $90.72 |
| PSW-16052CB2TK | 160mm | 52T | 20mm | ATAF | .063" | 15 | .040" | 7300 | Wood (Finish cuts) with Riving Knife | $68.04 |
| PSW-21018CBD3 | 210mm | 18T | 30mm | ATB | .094" | 20 | .063" | 7300 | Fast ripping on wood | $77.87 |
| PSW-21036CBD3 | 210mm | 36T | 30mm | ATB | .087" | 15 | .063" | 7300 | Wood (Combination) | $84.67 |
| PSW-21054AB3 | 210mm | 54T | 30mm | ATAFR | .087" | 10 | .063" | 7300 | Wood, or Veneer plywood (Cross cutting, finishing) | $100.12 |
| PSL-21052D3 | 210mm | 52T | 30mm | TCG | .094" | 5 | .063" | 7300 | MDF, solid surface, flooring, or laminate (single sided) | $115.77 |
| PSA-21068D3* | 210mm | 68T | 30mm | TCG | .094" | -3 | .063" | 7300 | Aluminum, or plastic | $104.65 |
*These blades are suitable for FESTOOL track saws and other brands' 6-1/2" track saws
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | PLATE | APPLICATION | PRICE |
| PSA-16056D2* | 160mm | 56T | 20mm | TCG | .094" | -3 | .063" | Aluminum | $90.72 |
| PSA-16056D2T* | 160mm | 56T | 20mm | TCG | 1.8mm | -3 | - | Aluminum | $90.72 |
| PSA-21068D3* | 210mm | 68T | 30mm | TCG | .094" | -3 | .063" | Aluminum | $104.65 |
*These blades are suitable for FESTOOL track saws and other brands' 6-1/2" track saws
Blades for KAPEX
- Unique tooth geometries provide optimum cutting results over OEM offerings
- Resin-filled laser cut slots reduce cutting noise and vibration
- Diameter and arbor specific for perfect fit
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| IW-26080AB3 | 260mm | 80T | 30mm | ATBR | .096" | -5 | 5870 | Ultimate trim cutting blade for small/thin/tall mouldings | $165.00 |
| MP-26080AB | 260mm | 80T | 30mm | ATAFR | .110" | -3 | 5870 | Finish cutting with less knife marks for smooth surface | $194.00 |
| SL-26072 | 260mm | 72T | 30mm | ATAF | .110" | 10 | 5870 | Signature Silencer general purpose blade | $110.00 |
USE LUBRICATION when cutting!!
Plus X Thin Kerf Technology is available for cordless and corded metal cutting saws. Now experience even less effort with more cuts per blade than ever before.
Cord-Free Series PLUS X- For battery powered circular saws.
Heavy Metal Series PLUS X- For corded, or battery powered circular saws.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| CF-13632MT | 5-3/8" | 32T | 20mm | TCG | .043" | -5 | 3900 | General purpose | $50.00 |
| CF-13636M | 5-3/8" | 36T | 20mm | ATB | .049" | -2 | 3900 | Spiral duct pipe, general purpose | $56.00 |
| CF-13656MT | 5-3/8" | 56T | 20mm | ATB | .043" | -10 | 3900 | Thin flat/ corrugated sheet steel | $60.00 |
| CF-16544MT | 6-1/2" | 44T | 5/8" | TCG | .049" | -5 | 5500 | General purpose | $66.00 |
| CF-16564MT | 6-1/2" | 64T | 5/8" | ATB | .049" | -10 | 5500 | Thin flat/ corrugated sheet steel | $74.00 |
| HMC-18542DT | 7-1/4" | 42T | 5/8" KO | TCG | .055" | -5 | 6000 | General purpose | $60.00 |
| HMC-18572CBDT | 7-1/4" | 72T | 5/8" KO | ATB | .051" | -10 | 6000 | Thin flat/ corrugated sheet steel | $80.00 |
| HMC-20344DT | 8" | 44T | 5/8" KO | TCG | .061" | -5 | 4300 | General purpose | $84.00 |
| HMC-20372CBDT | 8" | 72T | 5/8" KO | ATB | .051" | -10 | 4300 | Thin flat/ corrugated sheet steel | $92.00 |
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
Power Tool Series for the Contractor
Exceptional features and superior quality, Thin Kerf
TENRYU's comprehensive line of blades for portable and stationary power tools. More variety, better quality and greater value. Sizes range from 4" to 12" for most types of applications. The TENRYU PT SERIES goes on to include thin kerf wood cutting blades designed especially for smooth cuts on miter and slide-compound.
BLADE FEATURES:
- Fully hardened, expertly tensioned tool steel bodies absorb impact, remain flat and true, and resist excess heat build-up.
- High-grade, C-3, fine-grain tungsten carbide tips resist erosion for extended blade life.
- Aggressive rake angles for maximum cutting speed and efficiency.
- Each tip is precision honed on all four exposed surfaces. This minimizes micro-chipping along the sharp edge of the blade and results in a sharper, longer-lasting edge.
- Thin kerf for less waste and lighter cutting performance (reduced feed pressure).
- Inserted tooth design on some models greatly increases the body-to-tip braze area for greater support and tip strength.
- Expansion slots and/or variable pitch gullets keep blade cool under stressful work loads.
- Can be resharpened for extended blade life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PT-10024 | 4" | 24T | 20mm | ATAF | .055" | 18 | 11000 | For woodworking on Makita 4" trim saw | $36.00 |
| PT-10006-1 | 4" | 6T | 22mm | FTG | .157" | 20 | 11000 | For very clean and accurate biscuit slots in all woods | $40.00 |
| PT-10006-2 | 4" | 6T | 22mm | ATAFR | .157" | 25/-15 | 11000 | For exceptionally clean and smooth biscuit slots in all woods | $48.00 |
| PT-11036 | 4-3/8" | 36T | 20mm | ATAF | .063" | 15 | 13800 | For fine trim work on corded Makita trim saws | $31.20 |
| PT-11536 | 4-1/2" | 36T | 3/8" | ATAF | .063" | 15 | 13200 | For clean and easy trim work on the Porter Cable trim saw | $32.40 |
| PT-14036 | 5-1/2" | 36T | 5/8", 1/2" | ATAF | .063" | 15 | 10800 | For fine and easy trim work on Makita trim saw | $31.20 |
| PT-15236 | 6" | 36T | 1/2" | ATAF | .063" | 15 | 9500 | For fine trim woodworking with Porter Cable trim saw | $31.20 |
| PT-16524 | 6-1/2" | 24T | 5/8"KO | ATB | .079" | 20 | 9250 | General woodworking with 6-1/2" corded, or cordless circular saws | $24.00 |
| PT-16540 | 6-1/2" | 40T | 5/8"KO | ATB | .079" | 20 | 9250 | Finish woodworking with 6-1/2" corded, or cordless circular saws | $34.00 |
| PT-18516B | 7-1/4" | 16T | 5/8"KO | ATB | .073" | 27 | 8300 | Our super fast framing and ripping blade with INSERTED teeth | $14.60 |
| PT-18524AM | 7-1/4" | 24T | 5/8"KO | ATB | .073" | 20 | 8300 | The AMIGO 24 tooth contractor blade. Fast and long cutting life | $12.50 |
| PT-18524P | 7-1/4" | 24T | 5/8"KO | ATB | .073" | 20 | 8300 | Great for wet, or pressure treated lumber. Green coating | $13.50 |
| PT-18524V | 7-1/4" | 24T | 5/8"KO | ATB | .073" | 20 | 8300 | The unique VARIABLE PITCH design for wood, pressure treated, or composite decking | $13.50 |
| PT-18540 | 7-1/4" | 40T | 5/8"KO | ATB | .073" | 27 | 8300 | Unique INSERT tooth design cross cutting blade | $25.00 |
| PT-18540B | 7-1/4" | 40T | 5/8"KO | ATAF | .063" | 18 | 8300 | Ultra thin-kerf for finish cross-cutting. Bulk packaged | $23.00 |
| PT-18540-T | 7-1/4" | 40T | 5/8"KO | ATB | .063" | 18 | 8300 | Ultra thin-kerf for finish cross/rip cutting | $28.00 |
| PT-20360 | 8" | 60T | 5/8"KO | ATAF | .087" | 5 | 7300 | Smooth finish woodworking with 8" saws. Also good for vertical panel saws | $63.60 |
| PT-21018 | 8-1/4" | 18T | 5/8"KO | ATB | .075" | 25 | 7300 | Fast ripping with circular, table, or chop saws, INSERTED tooth design | $27.20 |
| PT-21040 | 8-1/4" | 40T | 5/8"KO | ATB | .079" | 15 | 7300 | General woodworking with 8-1/4" saws | $30.20 |
| PT-21060 | 8-1/4" | 60T | 5/8"KO | ATAF | .079" | 12 | 7300 | Finish woodworking with 8-1/4" saws | $52.00 |
| PT-26036 | 10-1/4" | 36T | 5/8"KO | ATAF | .079" | 20 | 5870 | Ripping wood with Big Foot saw | $68.00 |
POWER TOOL SERIES FOR MITER & SLIDE MITER SAWS
The "PT" Series blades for miter or slide miter saws range in sizes from 8-1/2" for the popular Hitachi through 12" diameters. 14" blades for older saws can be found on in our Pro Series for Wood. 15" miter saw blades are available in our Miter-Pro Series.
NOTE: This series may also be used for crosscutting applications on table saws.
EACH BLADE FEATURES:
- Thin kerf design is easier on miter saw motors and brakes.
- Fully hardened, expertly tensioned tool steel bodies.
- Fine grain tungsten carbide tips with fine grit honing for keen edges.
- Excellent price/value
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PT-21624 | 8-1/2" | 24T | 5/8" | ATB | .087" | 15 | 7000 | A fast cutting blade for use on 8-1/2" saws in thick wood | $41.60 |
| PT-21640 | 8-1/2" | 40T | 5/8" | ATB | .087" | 15 | 7000 | General woodworking | $48.00 |
| PT-21680 | 8-1/2" | 80T | 5/8" | ATAF | .087" | 10 | 7000 | Super smooth woodworking | $75.00 |
| PT-23040 | 9" | 40T | 5/8" | ATAF | .087" | 5 | 6400 | General woodworking 9" miter, or table saws | $65.00 |
| PT-25550 | 10" | 50T | 5/8" | ATAF | .091" | 15 | 5870 | UINSERTED TEETH. For use on miter saws. Great value | $48.00 |
| PT-25560 | 10" | 60T | 5/8" | ATB | .083" | 0 | 5870 | Used for miter or slide miter saws | $68.00 |
| PT-25560D | 10" | 60T | 5/8" | TCG | .087" | 10 | 5870 | Triple chip woodworking blade for man-made wood materials | $74.00 |
| PT-25572A | 10" | 72T | 5/8" | ATB | .098" | 15 | 5870 | Clean performance on miter saws | $74.00 |
| PT-25590 | 10" | 90T | 5/8" | ATAF | .091" | 10 | 5870 | Super smooth woodworking | $80.00 |
TENRYU'S superior quality line for extra heavy duty applications. Heavy plate design for less deflection.
TENRYU'S "Cadillac/Mercedes" grade.
EACH BLADE FEATURES:
- Heavier, laser cut, fully-hardened blade bodies stay flatter and truer longer.
- Top-quality, fine-grain, premium grade carbide tips for smoother cuts and longer life.
- Tips are fine-finish honed on all surfaces down to 600 grit.
- Heavy duty plate for less deflection.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRA-21660DN | 8-1/2" | 60T | 5/8" | TCG | .110" | -5 | 7000 | For industrial non-ferrous applications. Pro Series | $125.40 |
| PRA-25580DN | 10" | 80T | 5/8" | TCG | .126" | -5 | 5870 | General application. Up to 1/4 thick | $162.00 |
| PRA-255100DN | 10" | 100T | 5/8" | TCG | .102" | -5 | 5870 | Especially for thin extrusion. Up to 1/8" | $183.60 |
| PRA-305100DN | 12" | 100T | 1" | TCG | .134" | -5 | 5000 | General application. Up to 1/4" thick | $206.00 |
| PRA-305100DN2 | 12" | 100T | 5/8" | TCG | .134" | -5 | 5000 | For double miter saws, radial arm saws. Up to 1/4" thick | $216.00 |
| PRA-355100DN | 14" | 100T | 1" | TCG | .134" | -5 | 4300 | General application. Up to 1/4" thick. NOT for Upcut saws | $226.00 |
Helpful Cutting Tip: Apply stick wax, beeswax, or other lubricant to carbide tip area frequently to prevent chip build-up in blade gullets or galling of the non-ferrous metal to the surfaces of the carbide tips.
USE LUBRICATION when cutting!!
TENRYU'S superior quality line for professional craftsmen
Laser cut, press-tempered, individually tensioned, and chrome-plated bodies bring the cutting edge to the workpiece with unparalleled precision. Fine grain carbide tips are given the tooth configuration to do the job right.
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel bodies for true and accurate cuts
- High-grade, C-4, wear-resistant carbide tips for long life.
- Resin bond-filled expansion slots act as built in dampeners- keeping your cuts quiet!
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRP-25580CB | 10" | 80T | 5/8" | ATAF | .125" | 5 | 5870 | General plastic cutting with Table or Miter saws | $172.80 |
| PRP-255120AB3 | 10" | 120T | 5/8" | ATAFR | .079" | 0 | 5870 | Chip-free cutting on thin sheet acrylic, or extrusion- Various use | $259.20 |
| PRP-305100CB | 12" | 100T | 1" | ATAF | .134" | 5 | 5000 | General plastic cutting with Table or Miter saws | $216.00 |
| PRP-355100CB | 14" | 100T | 1" | ATAF | .134" | 5 | 4300 | General plastic cutting with Table or Miter saws | $260.00 |
Premium design and craftsmanship
The Pro Series for Solid Surface (PRS) blade is the professional's choice when industrial quality is required. TENRYU'S built-in dampening system keeps noise and vibration to a minimum, allowing for super-clean, melt-free performance. Sizes are available for most popular types of saws from 7-1/4" to 18" in diameter, including panel saws. triple chip, negative rake design for optimum performance in solid surface* and a variety of other materials.
*Solid surface is produced under trade names such as Corian®, Avonite®, Fountainhead® and others.
EACH BLADE FEATURES:
- Laser cut, fully-hardened tool steel plates for industrial use.
- Individually hand-tensioned plates for true, accurate cuts.
- Built-in dampening system to minimize vibration and reduce noise.
- Fine-grain, C-3, premium-grade carbide tips for smoother cuts and longer life.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRS-18540 | 7-1/4" | 40T | 5/8"KO | TCG | .094" | -5 | 5800 | For clean, easy cuts using portable saws | $118.80 |
| PRS-20360 | 8" | 60T | 5/8" | TCG | .094" | -5 | 7300 | For 8" vertical panel saws (Milwaukee, Safety Speedcut) | $129.60 |
| PRS-22064 | 220mm | 64T | 30mm* | TCG | .102" | -5 | 6900 | For European panel saws (220mm) | $142.00 |
| PRS-25560 | 10" | 60T | 5/8" | TCG | .102" | -5 | 5870 | General purpose with Miter, or Table saws | $140.40 |
| PRS-25580 | 10" | 80T | 5/8" | TCG | .102" | -5 | 5870 | Finish cutting. Good for thinner stock | $162.00 |
| PRS-30080 | 300mm | 80T | 30mm* | TCG | .110" | -5 | 5100 | For European vertical panel saws, or sliding table saws (300mm) | $184.00 |
| PRS-30580 | 12" | 80T | 1" | TCG | .110" | -5 | 5000 | General purpose with Miter, or Table saws | $184.00 |
| PRS-305100 | 12" | 100T | 1" | TCG | .110" | -5 | 5000 | Finish cutting. Good for thinner stock | $206.00 |
| PRS-355100 | 14" | 100T | 1" | TCG | .126" | -5 | 4300 | General purpose with Miter, or Table saws | $238.00 |
| PRS-405120 | 16" | 120T | 1" | TCG | .134" | -5 | 3690 | General purpose with Miter, or Table saws | $318.00 |
| PRS-455120 | 18" | 120T | 1" | TCG | .134" | -5 | 3400 | General purpose with Miter, or Table saws | $378.00 |
*with pin-drive holes
TENRYU'S superior quality line for professional craftsmen
Laser cut, press tempered, individually hammer tensioned, and chrome-plated bodies bring the cutting edge to the workpiece with unparalleled precision. Fine grain carbide tips are given the tooth configuration to do the job right. Pro Series blades are also made to handle non-ferrous metal cutting, plastics, or solid surface materials. These blades are made to satisfy the most demanding craftsmen.
EACH BLADE FEATURES:
- Fully-hardened, expertly-tensioned tool steel bodies for true and accurate cuts.
- High-grade, fine grain, C-3 wear-resistant carbide tips for long life.
- Fine grit honing of carbide edges for clean, smooth cuts.
- Resin bond-filled expansion slots act as built in dampeners- keeping your cuts quiet and the saws plate vibration-free!
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PR-25560CBN | 10" | 60T | 5/8" | ATB | .110" | 20 | 5870 | Fast and clean table saw blade. ATB grind | $110.00 |
| PR-25560D | 10" | 60T | 5/8" | TCG | .110" | 10 | 5870 | Fast and clean table saw blade. TCG grind | $112.86 |
| PR-25580CBN | 10" | 80T | 5/8" | ATB | .118" | 20 | 5870 | Clean, finish cross-cutting table saw blade. ATB grind | $127.16 |
| PR-25580D | 10" | 80T | 5/8" | TCG | .118" | 10 | 5870 | Clean, finish cross-cutting table saw blade. TCG grind | $129.80 |
| PR-255100AB | 10" | 100T | 5/8" | ATAFR | .118" | 15 | 5870 | For use in veneer plywood or thinner stock with table saws | $139.04 |
| PR-30560CBN | 12" | 60T | 1" | ATB | .118" | 20 | 5000 | General purpose table saw blade. Combination. Good for thick stock | $123.20 |
| PR-30580CBN | 12" | 80T | 1" | ATB | .118" | 20 | 5000 | General purpose cross-cutting table saw blade. Good for thick stock | $132.00 |
| PR-305100AB | 12" | 100T | 1" | ATAFR | .118" | 15 | 5000 | For use in veneer plywood or thinner stock with table saws | $147.40 |
| PR-35580AB | 14" | 80T | 1" | ATAFR | .118" | 15 | 4300 | General purpose table saw blade. Combination. Good for thick stock | $154.00 |
| PR-355100AB | 14" | 100T | 1" | ATAFR | .118" | 15 | 4300 | For use in veneer plywood or thinner stock with table saws | $173.80 |
| PR-405100CBN | 16" | 100T | 1" | ATB | .126" | 20 | 3690 | For use in veneer plywood or thinner stock with table saws | $220.00 |
Due to customer demand, Tenryu has expanded the silencer line up to include a full range of tooth counts with the same features.
*Unique ATAF Shear face grind for Fast and Long Lasting Cuts
*Dampened Laser Cut Plate for Less Vibration
*Great for Sliding Compound Miter Saw
For Slide-Miter Saws, convention Miter Saws, and crosscutting with Portable Saws
EACH BLADE FEATURES:
- Vibration dampening system featuring TENRYU resin filled laser cut body slots.
- Meticulous, hand hammer plate tensioning for a flatter blade and truer cuts.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| SL-16552 | 6-1/2" | 52T | 5/8"KO | ATAF | .063" | 18 | 9250 | Extra smooth cross-cutting with corded, or cordless | $36.80 |
| SL-18552 | 7-1/2" | 52T | 5/8"KO | ATAF | .063" | 18 | 8300 | Extra smooth cross-cutting with corded, or cordless | $36.80 |
| SL-21660 | 8-1/2" | 60T | 5/8" | ATAF | .079" | 5 | 7000 | Extra smooth cross-cutting with Miter saws | $58.00 |
| SL-25540 | 10" | 40T | 5/8" | ATAF | .098" | 5 | 5870 | General purpose. Fast cutting. Good for thick stock | $64.80 |
| SL-25550C | 10" | 50T | 5/8" | ATBR | .126" | 15 | 5870 | Super smooth combination blade. Full Kerf (.126") | $80.00 |
| SL-25550TC | 10" | 50T | 5/8" | ATBR | .110" | 15 | 5870 | Super smooth combination blade. Intermediate Kerf (.110") | $74.00 |
| SL-25560 | 10" | 60T | 5/8" | ATAF | .098" | 5 | 5870 | General purpose woodworking | $75.60 |
| SL-25572 | 10" | 72T | 5/8" | ATAF | .110" | 10 | 5870 | 10" Silencer blade for all purpose | $86.40 |
| SL-25580 | 10" | 80T | 5/8" | ATAF | .091" | 5 | 5870 | Finish cross cutting on wood | $90.80 |
| SL-26072 | 260mm | 72T | 30mm | ATAF | .110" | 10 | 5870 | Signature all purpose blade to fit FESTOOL KAPEX | $110.00 |
| SL-30540 | 12" | 40T | 1" | ATAF | .098" | 5 | 5000 | General purpose. Fast cutting. Good for thick stock | $84.60 |
| SL-30560 | 12" | 60T | 1" | ATAF | .098" | 5 | 5000 | General purpose woodworking | $90.80 |
| SL-30580 | 12" | 80T | 1" | ATAF | .091" | 5 | 5000 | Finish cross cutting on wood | $108.00 |
| SL-305100 | 12" | 100T | 1" | ATAF | .110" | 5 | 5000 | Super clean cuts | $123.20 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| SL-25550C | 10" | 50T | 5/8" | ATBR | .126" | 15 | 5870 | Super smooth combination blade. Full Kerf (.126") | $80.00 |
| SL-25550TC | 10" | 50T | 5/8" | ATBR | .110" | 15 | 5870 | Super smooth combination blade. Intermediate Kerf (.110") | $74.00 |
ULTIMATE TRIM SAW BLADE SERIES
- Silencer body: Laser cut, resin filled slots for less noise and less vibration
- PTFE coated plate: Reduces pitch build up and lowers resistance
- Great for finish carpentry with corded/cordless saws
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| SL-11040C | 4-3/8" | 40T | 20mm | ATAF | .063" | 15 | 13800 | Makita trim saw | $39.00 |
| SL-11542C | 4-1/2" | 42T | 3/8" | ATAF | .063" | 15 | 13200 | Porter Cable saw | $39.00 |
| SL-14042C | 5-1/2" | 42T | 5/8" | ATAF | .063" | 15 | 10800 | Makita trim saw | $39.00 |
| SL-15248C | 6" | 48T | 1/2" | ATAF | .063" | 15 | 9500 | Porter Cable trim saw | $41.20 |
| SL-16552C | 6-1/2" | 52T | 5/8" | ATAF | .063" | 18 | 9250 | Cordless or corded circular saws | $43.20 |
| SL-18560C | 7-1/4" | 60T | 5/8"KO | ATAF | .063" | 15 | 8300 | Circular saws | $45.40 |
TENRYU's steel cutting carbide tipped saw blades for INDUSTRIAL PERFORMANCE
Cut ferrous metals (mild steel) faster, cleaner and easier. Save time, money, the environment, and your respiratory health.
TENRYU's complete series of steel cutting saw blades called "Steel-Pro®" makes light work out of all kinds of mild steel: steel studs, steel sheet, steel pipe, channel, threaded rod and much, much more. Specially formulated C-6 carbide grade, combined with our unique tip design, resists breakage on impact and lasts longer- much longer than standard carbides or abrasive discs. Special tooth geometry with "inserted" tooth design greatly improves security of the tip, efficiency and durability.
EACH BLADE FEATURES:
- Rugged plates and specially formulated carbide tips with a special tooth grind for fast, clean cuts.
- High quality cuts without the clouds of dust and scorch marks associated with friction blades.
- Cool cuts that leave the work piece edge free of burrs.
- Reduced cost-per-cut and maximized performance for the operator as a result of fewer blade changes.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRF-18538BW | 7-1/4" | 38T | 5/8"KO | ATB | .079" | 0 | 5800 | Good for 1/8" to 1/4" wall thickness | $54.00 |
| PRF-18548BW | 7-1/4" | 48T | 5/8"KO | ATB | .079" | 0 | 5800 | Tenyru's most popular Steel-Pro. Cuts up to 1/8" wall thickness | $56.00 |
| PRF-18548CBWD | 7-1/4" | 48T | 5/8" KO | MATB | .073" | 0 | 5800 | For mechanical construction. Up to 1/8" wall thickness | $56.00 |
| PRF-18556CB | 7-1/4" | 56T | 5/8"KO | ATAF | .071" | -10 | 5800 | More number of teeth for cutting thin sheet steel (Flat stock only) | $69.00 |
| PRF-18570CBN | 7-1/4" | 70T | 5/8"KO | ATB | .069" | -10 | 5800 | For very thin sheet steel. (Flat stock only) | $73.00 |
| PRF-20348CBN | 8" | 48T | 5/8" | ATB | .087" | 0 | 4300 | General purpose. Up to 1/8" wall thickness. For Milwaukee saw | $75.20 |
| PRF-21048BW | 8-1/4" | 48T | 5/8"KO | MTCG | .087" | 0 | 5800 | General purpose. Up to 1/8" wall thickness. For circular saws | $75.00 |
| PRF-23048CBN | 9" | 48T | 1" | ATB | .087" | 0 | 3700 | General purpose. Up to 1/8" wall thickness. For 9" saws | $80.00 |
| PRF-25550D | 10" | 50T | 1", 5/8" | TCG | .091" | 0 | 2500 | General purpose. Up to 1/8" wall thickness. For 10" DRY CUTTERS ONLY | $122.00 |
| PRF-30560D* | 12" | 60T | 1" | TCG | .098" | 0 | 2000 | General purpose. Up to 3/8" wall thickness. For 12" Dry cutters (JEPSON, MAKITA, etc.) | $128.00 |
| PRF-32084BW | 12-5/8" | 84T | 1" | MTCG | .087" | 0 | 1700 | Foam insulated panels, for JEPSON #8320 Saw | $200.00 |
| PRF-35572D* | 14" | 72T | 1" | TCG | .094" | 0 | 1700 | General purpose. Up to 3/8" wall thickness. For 14" Dry cutters | $190.00 |
| PRF-41580D | 16-5/16" | 80T | 1" | TCG | .098" | 0 | 2500 | Foam insulated panels, for Makita 5402NA, or SKIL SPT70V11 | $520.00 |
STEEL-PRO® STABILIZER
TENRYU establishes an even higher standard of steel-cutting excellence! TENRYU has raised the bar once again in the portable saw, steel-cutting industry!
Virtually all test monitors recognized better longevity of the blade. This "STABILIZER" technology stabilizes the blade in the cut with much less vibration during operation.
Cleaner cuts, longer life and a more comfortable feeling are great benefits of "STABILIZER", making it more "user-friendly".
TENRYU blades do not require blade plate stabilizes, as is commonly known in the market. In fact, the patent pending design technology of TENRYU's "STABILIZER" blade eliminates any need for a blade stabilizer and produced an even more effective job!
EACH BLADE FEATURES:
- "STABILIZER" plate (Pat. Pend.) improves the cutting performance
-
Better straightness of cut
-
Cleaner cuts
-
Longer cutting life
-
Reduced burring
-
Reduced scattering of steel debris
-
Less Vibration
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRF-18548BWK | 7-1/4" | 48T | 5/8"KO | MTCG | .079" | 0 | 5800 | New signature steel cutting blade for mechanical construction. Up to 1/8" wall thickness | $66.00 |
| PRF-20348BWK | 8" | 48T | 5/8"KO | MTCG | .087" | 0 | 4300 | All purpose steel cutting blade for mechanical construction. Up to 1/8" wall thickness | $86.40 |
| PRF-21048BWK | 8-1/4" | 48T | 5/8"KO | MTCG | .079" | 0 | 5800 | All purpose steel cutting blade for mechanical construction. Up to 1/8" wall thickness | $86.40 |
| PRF-23048BWK | 9" | 48T | 1" | MTCG | .087" | 0 | 3700 | All purpose steel cutting blade for mechanical construction. Up to 1/8" wall thickness | $86.40 |
| PRF-30560DK | 12" | 60T | 1" | TCG | .098" | 0 | 2000 | General purpose. Up to 3/8" wall thickness. For 12" Dry cutters (JEPSON, Makita, etc.) | $140.00 |
| PRF-35572DK | 14" | 72T | 1" | TCG | .098" | 0 | 1700 | General purpose. Up to 3/8" wall thickness. For 14" Dry cutters | $210.00 |
STEEL-PRO® SELECT
The Steel-Pro® Select is TENRYU's 2nd generation of mild steel cutting carbide tipped saw blades that are Quieter!
These blades are designed to cut mild steel as STEEL-PRO® blades do, but cut quieter than STEEL-PRO® and last longer as well.
EACH BLADE FEATURES:
- Exclusive two-ply plate design for self dampening and low noise operation.
- Tough C-6 carbide for impact resistance and long cutting life.
- Inserted teeth with chip limiting steel support for added durability and safety.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| PRF-18548DS | 7-1/4" | 48T | 5/8"KO | TCG | .079" | 0 | 5800 | General purpose. Up to 1/8" wall thickness | $78.00 |
| PRF-25550DS | 10" | 50T | 5/8", 1" | TCG | .091" | 0 | 2500 | General purpose. Up to 1/8" wall thickness. For 10" DRY CUTTERS ONLY | $151.20 |
| PRF-30560DS* | 12" | 60T | 1" | TCG | .094" | 0 | 2000 | General purpose. Up to 3/8" wall thickness. For 12" Dry cutters (JEPSON, Makita, etc.) | $150.00 |
| PRF-30580BWS* | 12" | 80T | 1" | MTCG | .091" | -5 | 2000 | Thin gauge wall material cutting (20 gauge to 1/16") with Dry cutters | $236.00 |
| PRF-35572DS* | 14" | 72T | 1" | TCG | .094" | 0 | 1800 | General purpose. Up to 3/8" wall thickness. For 14" dry cutters | $190.00 |
| PRF-35590BWS* | 14" | 90T | 1" | MTCG | .091" | -5 | 1800 | Thin gauge wall material cutting (20 gauge to 1/16"). For dry cutters | $258.00 |
*These blades are for use on low RPM "dry-cut" chop saws only.
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
Now it is possible to cut stainless steel with greater efficiency on your low RPM metal-cutting saw
The Steel-ProR for Stainless Series is the result of nearly two years of intensive product testing. Never before has cutting stainless steel been so easy and economical. The TENRYU Steel-Pro® for Stainless blades allow you to cut a wide variety of stainless steel materials with:
- Greatly improved cutting speed
- Less burr on edges (resluting in tremendous time savings)
- No scorching of the stainless
- Reduced sparking
- Fewer blade changes
EACH BLADE FEATURES:
- Unique tooth design and geometry for smoother and easier cuts.
- New grade of carbide for longer cutting life in stainless steel.
- Resin bond-filled laser expansion slots for reduced vibration.
These blades, when used for the proper application, will save time and money.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| CF-13556S**** | 5-3/8" | 56T | 20mm | MTCG | .043 | 0 | 3700 | Best for sheet stainless no thicker than 12 gauge. Not suitable for heavy stock | $86.40 |
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| SPS-18064**** | 7" | 64T | 20mm | MTCG | .063" | 0 | 4000 | Best for sheet stainless no thicker than 12 gauge. Not suitable for heavy stock | $122.00 |
| SPS-20372**** | 8" | 72T | 5/8" | MTCG | .071" | 0 | 4300 | Best for sheet stainless no thicker than 12 gauge. Not suitable for heavy stock | $140.40 |
| SPS-23080**** | 9" | 80T | 1" | MTCG | .071" | 0 | 3000 | Best for sheet stainless no thicker than 12 gauge. Not suitable for heavy stock | $150.00 |
| SPS-30578* | 12" | 78T | 1" | MTCG | .087" | 10 | 1700 | 1/8" to 1/4" wall thickness, angles, solid, etc. | $291.60 |
| SPS-30578A** | 12" | 78T | 1" | MTCG | .087" | 0 | 1700 | Up to 1/4" wall thickness of Tubing (Round or square) and Channels | $291.60 |
| SPS-35590* | 14" | 90T | 1" | MTCG | .087" | 10 | 1700 | 1/8" to 1/4" wall thickness, angles, solid, etc. | $324.00 |
| SPS-35590A** | 14" | 90T | 1" | MTCG | .087" | 0 | 1700 | Up to 1/4" wall thickness of Tubing (Round or square) and Channels | $324.00 |
| SPS-355120*** | 14" | 120T | 1" | MATB | .079" | -3 | 1700 | For Thin gauge(14-16 gauge) stock, great for tubing | $380.00 |
NOTE: * SPS-30578 and SPS-35590- Material wall thickness (1/8" to 1/4"), not designed for tubing; ** SPS-30578A and SPS-35590A- Material wall thickness up to 1/4", great for tubing; *** SPS-355120- Material wall thickness (very thin stock 14-16 gauge), great for tubing; ****CF-13556S, SPS-18064, SPS-20372, and SPS-23080- Material thickness 14-16 gauge, no thicker than 12 gauge, great for flat stock.
Usage requirements: All blades
- Use only low RPM Dry-cut saws only
- 303 & 304 stainless only
- Highly recommendable to use lubricant or stick wax
- Clamp material securely to base
Please note all safety instructions before use and adhere to instructions for maximum RPM speed.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and properly FUNCTIONING UPPER and LOWER BLADE GUARDS.
High quality DIAMOND grit blades for general construction applications using saws or grinders
TSD is a line of products representing a revolution in diamond tooling technology. TENRYU has developed a method of fusing polycrystalline diamond particles to various shaped tool steels. As a result, very fast cutting rates and longer, effective cutting life is attained. TSD was originally developed to cut and grind cast-iron and ductile iron materials. Through further refinement it was discovered that fast, efficient cutting and grinding of a multitude of other materials is possible. That includes mild steel, brick, granite, marble and other natural stones, ceramic materials, solid-surface materials, fiber reinforced plastics and a variety of masonry materials.
TSD (TENRYU SUPER DIAMOND) Cutoff Blades (Type S-1 Wheels)
FAST CUTTING of a wide variety of materials on portable, chop and gas-engine rescue or construction type saws.
Quickly cuts cast iron, ductile iron, steel, sheet metal, car bodies, refractory brick, masonry materials and much, much more.
| MODEL # | DIA. | BORE | KERF | MAX RPM | PRICE |
| TSD-180D | 7" | 5/8"KO | .089" | 8300 | $124.80 |
| TSD-355D2 | 14" | 20mm | .132" | 8300 | $540.80 |
TENRYU'S Premium Heavy Duty, Industrial, Multi-Purpose Blades
TENRYU offers an entire line of industrial duty "work horse" blades that cover the 10 to 16 inch diameter range. These blades are all meant to be used on shop tools such as table saws. In addition, many models can be used on more specialized machinery with arbor hole adjustments. Each blade has a large carbide tip following the European tradition.
The small shop and corporate giant alike will appreciate getting quality industrial blades at attractive prices.
EACH BLADE FEATURES:
- Individually hand-hammered, fully heat hardened steel plates for flat, true, wobble-free operation.
- Aggressive grind angles for easy performance in heavy-duty jobs. Honing carried out at 400 grit to limit microchipping and produce a very keen edge.
- Large, high-grade carbide tips selected for long life in woodworking applications.
- Ample side clearance provides for air flow between carbide and workpiece - limits likelihood of burning even on heavy rips. This also prevents premature dulling.
| MODEL # | DIA. | TEETH | BORE | GRIND | KERF | HOOK | MAX RPM | APPLICATION | PRICE |
| RS-25524CBN | 10" | 24T | 5/8" | ATB | .126" | 20 | 5870 | Fast cutting rip blade for industry. Great value and performance. | $52.80 |
| RS-25524-U | 10" | 24T | 5/8" | ATB | .079" | 20 | 5870 | Thin-kerf (.079") ripping blade for Table saws | $88.00 |
| RS-25536CBN | 10" | 36T | 5/8" | ATB | .126" | 20 | 5870 | Fast cutting general purpose | $66.00 |
| RS-25540 | 10" | 40T | 5/8" | ATAF | .118" | 15 | 5870 | General purpose. Economically priced. Great value | $50.00 |
| RS-25540-U | 10" | 40T | 5/8" | ATAF | .079" | 20 | 5870 | Thin-kerf (.079") combination blade for Table saws | $102.00 |
| RS-25548CBN | 10" | 48T | 5/8" | ATB | .126" | 20 | 5870 | General purpose combination | $74.80 |
| RS-25550 | 10" | 50T | 5/8" | ATBR | .126" | 15 | 5870 | Rip and Cross Cuts | $70.00 |
| RS-25550-2 | 10" | 50T | 5/8" | ATBR | .126" | 15 | 5870 | Quiet planer combination with resin filled laser slots | $74.00 |
| RS-25560 | 10" | 60T | 5/8" | ATAF | .118" | 10 | 5870 | General purpose cross-cutting. Economically priced. ATAF grind | $140.40 |
| RS-25560D | 10" | 60T | 5/8" | TCG | .125" | 10 | 5870 | General purpose cross-cutting. Economically priced. TCG grind | $60.00 |
| RS-30524CBN | 12" | 24T | 1" | ATB | .134" | 20 | 5000 | Fast ripping with table saws for woodworking | $74.80 |
| RS-30536CBN | 12" | 36T | 1" | ATB | .134" | 20 | 5000 | Fast cutting general purpose | $83.60 |
| RS-30548CBN | 12" | 48T | 1" | ATB | .134" | 20 | 5000 | General purpose combination | $88.00 |
| RS-30560 | 12" | 60T | 1" | ATBR | .134" | 15 | 5000 | Tenryu's original planer combination | $110.00 |
| RS-35524CBN | 14" | 24T | 1" | ATBR | .142" | 20 | 4300 | Fast cutting for work in hardwoods. Industrial quality | $89.70 |
| RS-35536CBN | 14" | 36T | 1" | ATBR | .142" | 20 | 4300 | Fast cutting for work in hardwoods. Industrial quality | $98.90 |
| RS-35548CBN | 14" | 48T | 1" | ATBR | .142" | 20 | 4300 | Semi-smooth cuts in hardwoods. Good rips and crosses | $105.80 |
| RS-40536CBN | 16" | 36T | 1" | ATBR | .134" | 20 | 3690 | Fast cutting general purpose | $119.60 |
| RS-40560CB | 16" | 60T | 1" | ATAF | .126" | 15 | 3690 | Semi-smooth work in wood and wood products on 16" saws. See Also 16" x 100 tooth in Pro Series for Wood | $172.00 |
